H42W Stainless Steel Vertical Check Valve

Product overview

Product model: H42W
Nominal diameter: DN40 ~ 200mm
Nominal pressure: PN1.6~2.5MPa
Applicable temperature: ≤200
Applicable medium: corrosive medium, weak corrosive medium
Main material: chromium nickel titanium stainless steel, chromium nickel molybdenum titanium stainless steel
Design standard: API6D, JB/T8937, API594
Structure length: API594, JB/T8937
Connection standard: ASME B16.5, GB/T 9113, JB/T 79, HG/T 20592
Pressure test: API 598, GB/T 13927, JB/T 9092
Pressure-temperature rating: ASME B16.34, GB/T12224

H42W Stainless Steel Vertical Check Valve product details

H42W Stainless Steel Vertical Check Valve product description

H42W Stainless Steel Vertical Check Valve produced and sold by Baigang valve group is normally closed, due to the pipeline inlet medium pressure, and overcome the spring resistance to open the valve. When the inlet side of the medium pressure is lower than the outlet end, the spring will push the spool to the valve seat to close the valve to prevent the media countercurrent, it played the role of check. The valve due to the use of spring support spool, so the use of vertical or horizontal installation can be installed.


H42W Stainless Steel Vertical Check Valve material list

model PN Working pressure / Mpa Applicable temperature / ℃ Suitable media material
Body, disc Pilot valve Sealing surface
H42W-16P 16 1.6 ≤200 Corrosive media Chrome nickel-titanium stainless steel Chrome nickel-titanium stainless steel Chrome nickel-titanium stainless steel
H42W-25R 25 2.5 Weak corrosive medium Chromium nickel molybdenum titanium stainless steel Chromium nickel molybdenum titanium stainless steel Chromium nickel molybdenum titanium stainless steel


H42W Stainless Steel Vertical Check Valve performance specifications

Technical Parameters Pressure Level
16 20 25 32 35 40 45 50 60 70
Working pressure (Mpa) ≤16 ≤20 ≤25 ≤32 ≤35 ≤40 ≤45 ≤50 ≤60 ≤70
Test pressure (M) strength 24 30 37.5 48 52.5 60 67.5 75 90 105
seal 17.6 22 27.5 35.2 38.5 44 49.5 55 66 77

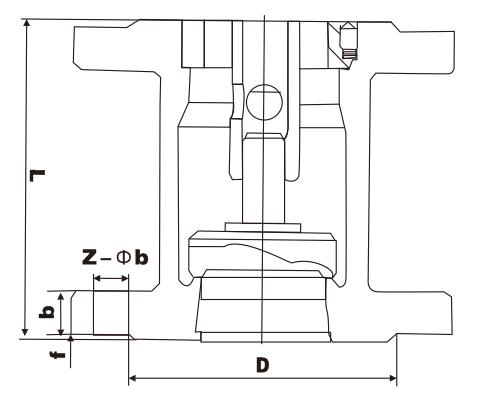

H42W Stainless Steel Vertical Check Valve main dimensions 1.6Mpa


model DN The main connection size size
L D D 1 D 2 D 6 b f f 1 Z-φd H
H42W-16PH42W-16R 40 200 145 110 85 - 16 2 - 4-18 95
50 230 160 125 100 - 16 2 - 4-18 105
65 290 180 140 120 - 18 2 - 4-18 120
80 310 195 165 135 - 20 3 - 8-18 130
100 350 215 180 155 - 20 3 - 8-18 140
125 400 245 210 185 - 22 3 - 8-12 155
150 480 280 240 210 - 24 3 - 8-23 180
200 600 335 295 265 - 26 3 - 12-23 215


2.5Mpa

model DN (mm) Size (mm)
L 1 L 2 L 3 D D1 D2 b f Z-Φ
H42W-25PH42W-25R 15 - 85 85 95 65 45 16 - 4-Φ14
20 - 95 95 105 75 55 16 - 4-Φ14
25 - 100 105 115 85 65 16 - 4-Φ14
32 - 105 150 135 100 78 16 - 4-Φ14
40 - 115 160 145 110 88 18 - 4-Φ14
50 140 125 170 160 125 100 20 3 4-Φ14
65 160 145 180 180 145 120 22 3 8-Φ18
80 185 155 200 195 160 135 22 3 8-Φ18
100 210 210 210 230 190 160 24 3 8-Φ23
125 - 275 275 275 220 188 28 3 8-Φ25
150 300 225 300 300 250 218 30 3 8-Φ25
200 380 380 380 360 310 278 34 3 12-Φ25


Reminder:

All text, data and pictures in this article are for reference only.To see more details of the H42W Stainless Steel Vertical Check Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
