Q647F Pneumatic Fixed Ball Valve

Product overview

Product model: Q647F
Nominal diameter: DN50~500mm
Nominal pressure: PN1.6~6.4MPa
Applicable temperature: -28℃ ~ 300℃
Applicable medium: water, steam, oil, nitric acid, acetic acid
Drive mode: manual, pneumatic
Structure length: GB1221-89
Flange size: GB9113, JB79-59
Inspection test: JB/T9092-99

Q647F Pneumatic Fixed Ball Valve product details

Pneumatic Fixed Ball Valve overview

Q647F Pneumatic Fixed Ball Valve produced and sold by Baigang valve group, pneumatic ball valve, ball valve is a two-way valve, flow unlimited.The middle flange is connected by stud, and the upper and lower valve stem are provided with sliding bearings to reduce friction, and the operation is labor-saving and smooth.Under normal circumstances, when the low pressure seating rely on spring pre-tightening force to seat close to the sphere seal, high pressure, the formation of piston effect on the seat, under the effect of upstream medium pressure, make the seat clamp sphere to seal fixed ball valve, pneumatic, pneumatic ball valve, ball valve is widely used in process control system implemented on or off.


Pneumatic Fixed Ball Valve technical parameters

Valves transfer method Link form structure type Sealing surface Nominal pressure (MPa) Body material
Ball valve 6-pneumatic
       6s-pneumatic band manual 		4-flange
 Fixed ball straight F-Fluoroplastic
       H-alloy steel
       PPL 		1.6
       2.5
       4.0
       6.4 		According to the table body
       material code
Nominal diameter DN (mm) 50-500
Material code C P R
The main parts Body WCB ZG1Cr18Ni9Ti ZG1Cr18Ni12Mo2Ti
Ball board 2Cr13 1Cr18Ni9Ti 1Cr18Ni12MoTi
Valve stem 2Cr13 1Cr18Ni9Ti 1Cr18Ni12MoTi
Sealing ring Enhanced polytetrafluoroethylene alignment poly stupid
filler Polytetrafluoroethylene flexible graphite
Fitness
       with
       working
       conditions 		Suitable media Water, steam, oil Nitric acids Acetic acid
proper temperature -28 ° C to 300 ° C
Control type Double-acting / single-acting
The role of type Cut / adjust
input signal Electrical signal: 0 ~ 10mA, -4 ~ 10mA gas signal 20 ~ 100kPa
Reply voltage AC220V / DC24V
Working medium Purification compressed gas
Actuator model GT series, HY series, AW series, ZSH series
Air pressure 0.4 ~ 0.7MPa

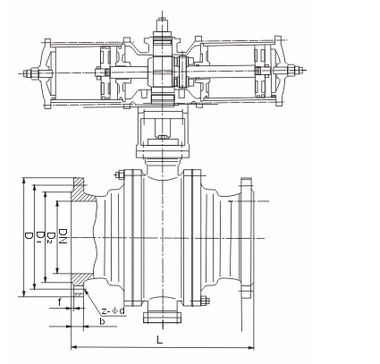

Pneumatic Fixed Ball Valve installation dimensions


Nominal diameter DN (mm) Size (mm) Actuator model
1.6MPa 2.5MPa 4.0MPa
L D D1 B Z-φD L D D1 B Z-φD L D D1 B Z-φD
50 203 160 125 16 4-18 216 160 125 20 4-18 216 160 125 20 4-18 Optional GTD / GTE,
       AW / AWS, HY,
       ZSH series actuators
       (the above optional only for the
       specific election based on actual requirements)
65 222 180 146 18 4-18 241 180 145 22 8-18 241 180 145 22 8-18
80 241 195 160 20 8-18 283 195 160 22 8-18 283 195 160 22 8-18
100 305 215 180 20 8-18 305 230 190 24 8-23 305 230 190 24 8-23
125 356 245 210 22 8-18 381 270 220 28 8-25 381 270 220 28 8-25
150 394 280 240 24 8-23 403 300 250 30 8-25 403 300 250 30 8-25
200 457 335 295 26 12-23 502 360 310 34 12-25 502 375 320 38 12-30
250 533 405 355 30 12-25 586 425 370 36 12-30
300 610 460 410 30 12-25 648 485 430 40 16-30
350 686 520 470 34 16-25 762 550 490 44 16-34
400 762 580 525 36 16-30 838 610 550 48 16-34
450 864 640 585 40 20-30 914 660 600 50 20-34
500 914 705 650 44 20-34 991 730 660 52 20-41


Reminder:

All text, data and pictures in this article are for reference only.To see more details of the Q647F Pneumatic Fixed Ball Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
